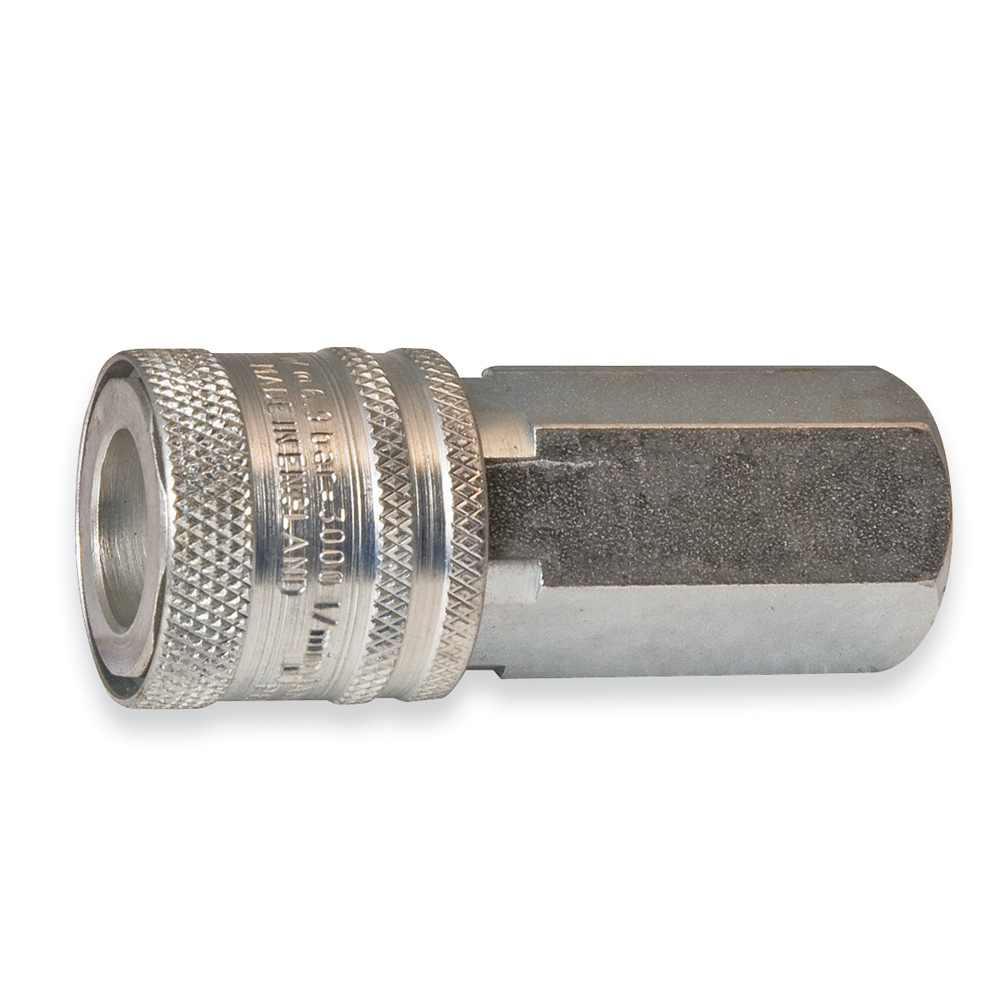

Couplings - NITTO Equivalent - High Vol. - Two Stage Female

Assorted Sizes

Buying Options

Quantity Image Name Price
Coupling - NITTO Equivalent - High Vol. - Two Stage - Female - 1/2" Coupling - NITTO Equivalent - High Vol. - Two Stage - Female - 1/2"
01.3435 - Female | 1/2" BSP (HV40SF)
$17.95
Sold Out
Coupling - NITTO Equivalent - High Vol. - Two Stage - Female - 1/4" Coupling - NITTO Equivalent - High Vol. - Two Stage - Female - 1/4"
01.3425 - Female | 1/4" BSP (HV20SF)
$13.50
Sold Out
Coupling - NITTO Equivalent - High Vol. - Two Stage - Female - 3/8" Coupling - NITTO Equivalent - High Vol. - Two Stage - Female - 3/8"
01.3430 - Female | 3/8" BSP (HV30SF)
$16.95
Sold Out

Our Nitto Equivalent couplings continue to be widely used in all industrial and automotive applications. All of our fittings are made to exacting standards and put through constant quality checks and controls to ensure reliability across all styles and air flow requirements.

Features:

  • NITTO EQUIVALENT SERIES
  • Two stage slide locking system
  • Steel construction
  • Use with Nitto Equivalent adaptors
  • Interchanges with Nitto equivalent couplings
  • High volume air flow
  • Application: Compressed air only

Product Specifications

  • Supply Pressure Max: 152 psi, 1050 kPa
  • Airflow: 92 cfm, 2605 L/mn @100 psi, 690 kPa
  • Operation: Two stage slide
SKU No. Tail / Thread Type Tail / Thread Size Archive Part No.
01.3425 FEMALE 1/4" BSP HV20SF
01.3430 FEMALE 3/8" BSP HV30SF
01.3435 FEMALE 1/2" BSP HV40SF

(01.3425M)

SKU No. Tail / Thread Type Tail / Thread Size Archive Part No.
01.3425 FEMALE 1/4" BSP HV20SF
01.3430 FEMALE 3/8" BSP HV30SF
01.3435 FEMALE 1/2" BSP HV40SF
SKU 01.3425M
