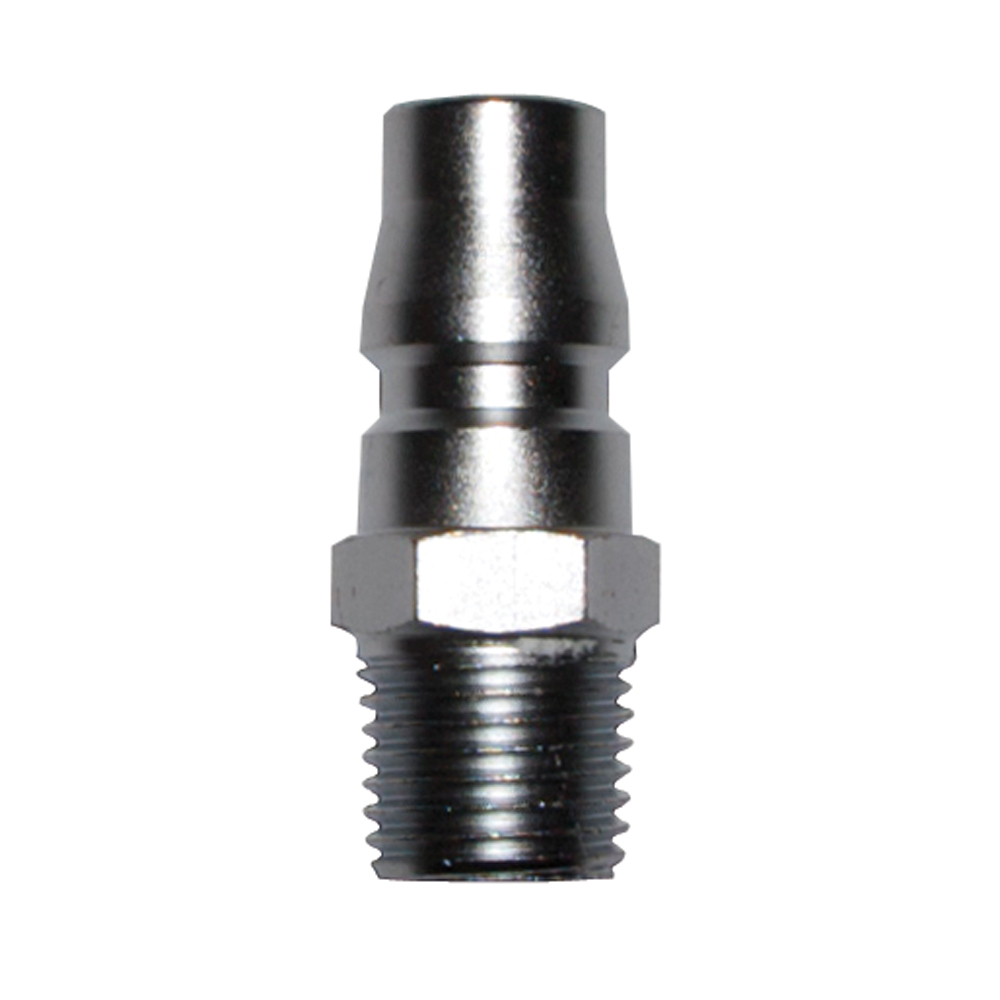

Adaptor - Nitto Equivalent - High Vol. - Male | 1/4"

12.3460 - Male | 1/4" BSP (HV20PM)

$4.50

SKU: 12.3460

Sold Out
Please be aware that we are currently upgrading our systems, backordered items will not be shipped until Mid October 2021
Tail/thread Size

Our NITTO Equivalent adaptors continue to be widely used in all industrial and automotive applications. All of our fittings are made to exacting standards and put through constant quality checks and controls to ensure reliability across all styles and air flow requirements.

Features:

  • NITTO EQUIVALENT SERIES
  • Steel construction
  • Suits both high volume two stage and one stage NITTO equivalent couplings
  • Interchanges with NITTO equivalent adaptors

Product Specifications

  • Tail / Thread Type: Male
  • Material: Steel
  • Supply Pressure Max: 152 psi, 1050 kPa
  • Airflow: 101 cfm, 2860 L/min @ 100 psi, 690 kPa
  • Application: Compressed air only
SKU No. Tail/thread size Archive Part No.
12.3460 1/4" BSP HV20PM
12.3460BL 1/4" BSP HV20PM
12.3461 3/8" BSP HV30PM
12.3461BL 3/8" BSP HV30PM
12.3462 1/2" BSP HV40PM
