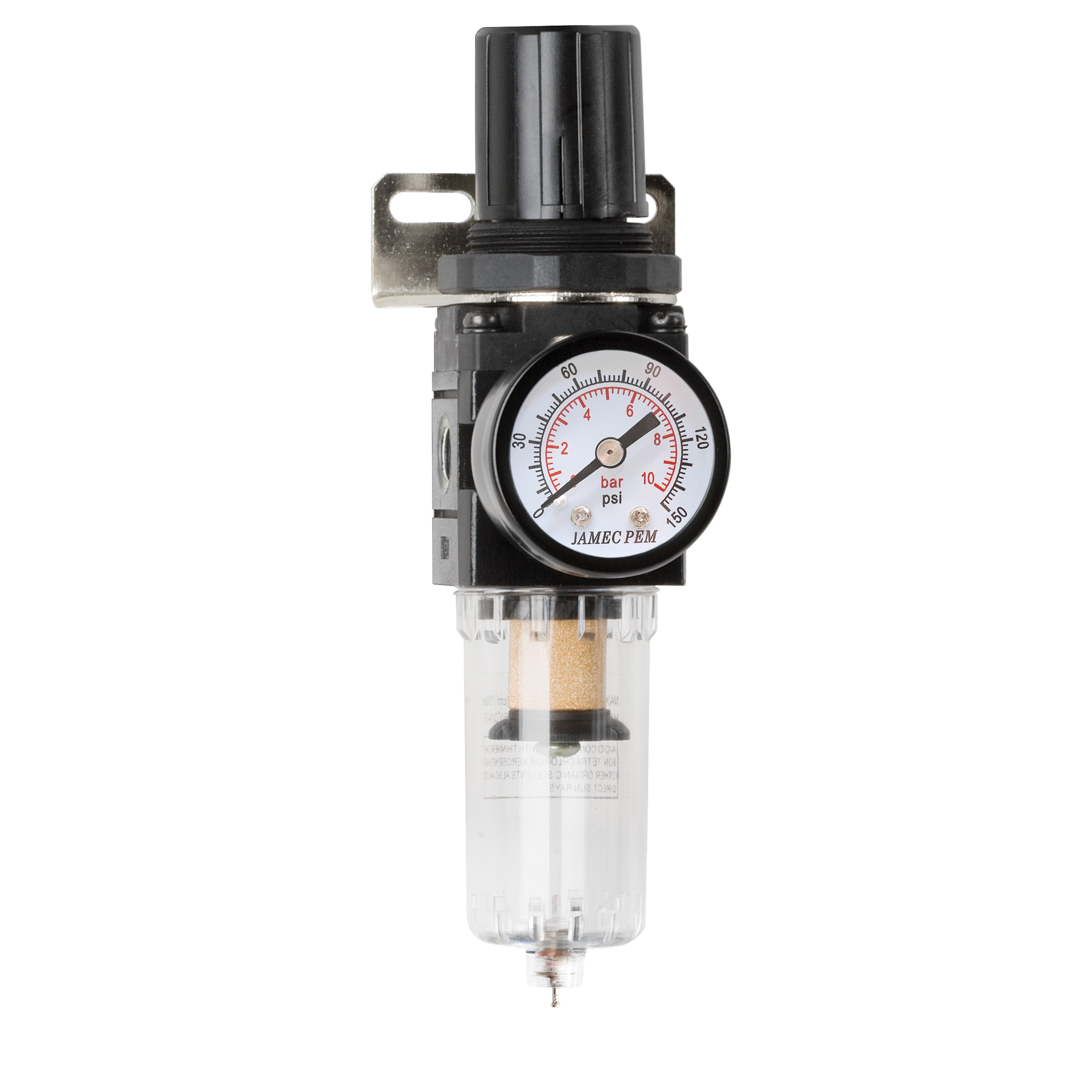

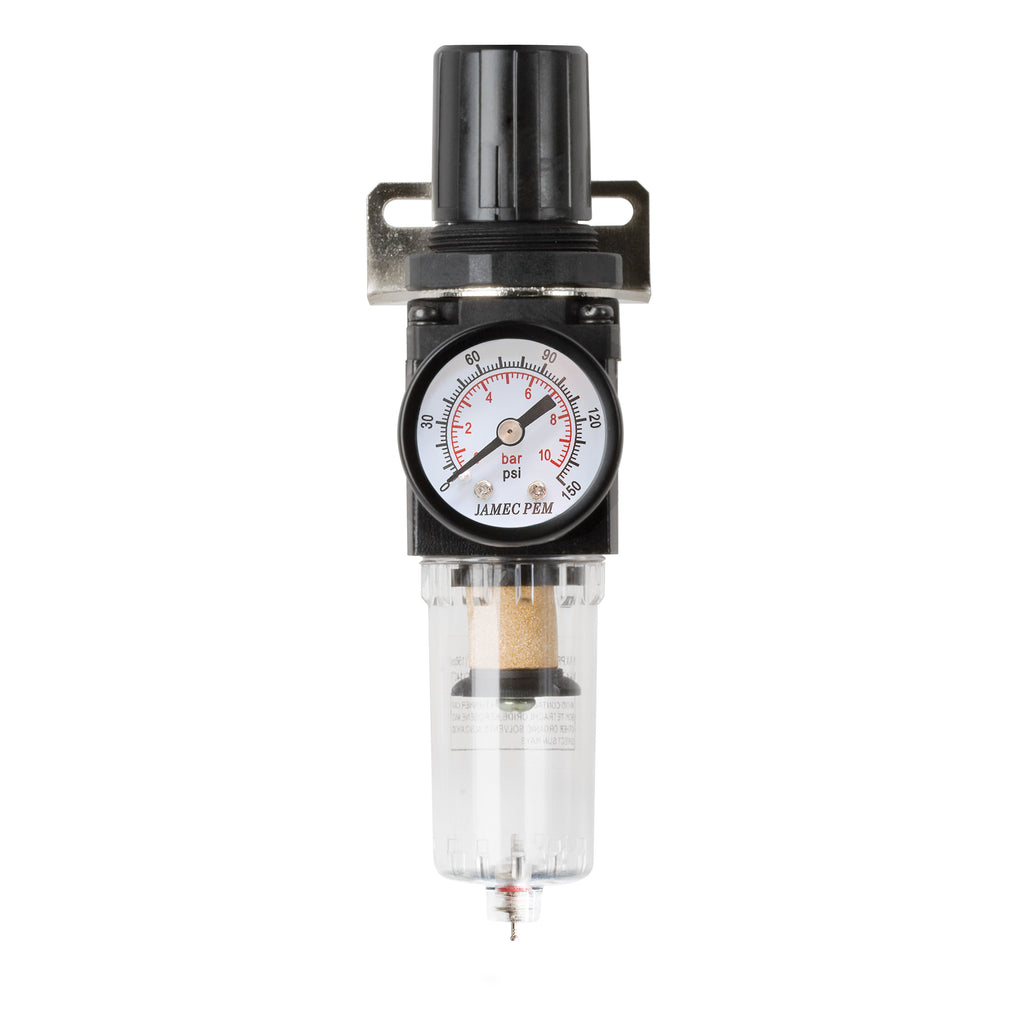

1/4" BSP Mini Filter Regulator
1/4" BSP Mini Filter Regulator
Pickup available at Eagle Farm IND (QLD)
Usually ready in 2-4 days
Description
Premium filter regulators designed to deliver clean, controlled compressed air for workshop and industrial applications. Each unit comes complete with a pressure gauge, mounting bracket and semi-automatic drain valve for both differential pressure and manual draining. The transparent polycarbonate bowl allows easy visual inspection, while the locking adjustment knob provides simple and precise pressure control. Featuring a 5-micron brass filter element to remove moisture, oil and particles from compressed air, it helps protect pneumatic tools, spray guns and equipment from damage. With a maximum inlet pressure of 150 psi and adjustable output pressure from 7.5–150 psi, it provides stable and reliable airflow for consistent performance.
Features:
- 1/4" BSP female inlet / outlet
- Polycarbonate bowl
- Semi-automatic drain
- 5μm brass filter element
- Robust metal construction
- Includes mounting bracket and gauge (1/8" BSP rear entry)
Specifications
- Thread: 1/4" BSP Female
- Dual Scale: psi and bar
- Pressure Range: 5–150 psi, 0–10 bar
- Flow Rate: 18 cfm, 500 L/min
- Dimensions: 40 L x 40 W x 162 D mm
