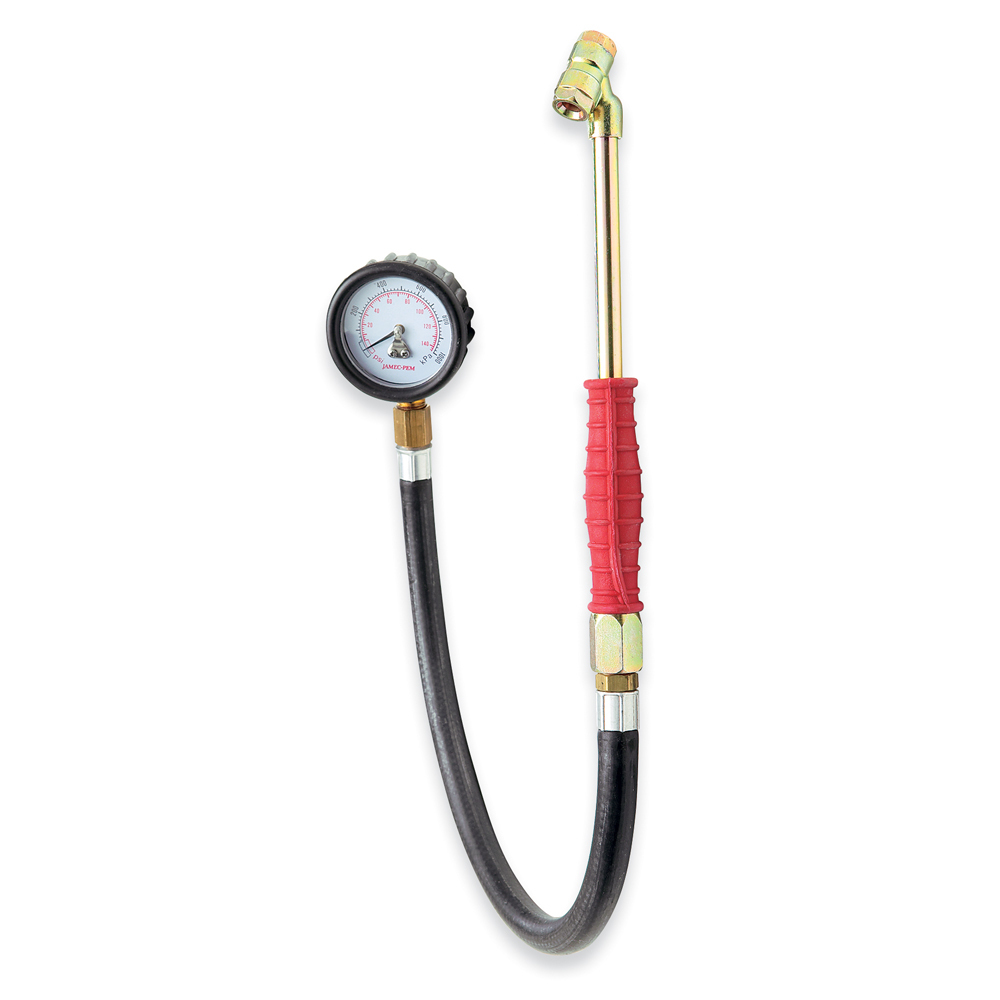

Tyre Gauge - Dial - Dual Angle Chuck

Hold On Chuck


SKU: 05.2250

In Stock
Please be aware that we are currently upgrading our systems, backordered items will not be shipped until Mid October 2021

Jamec Pem tyre gauges come in a variety of styles to meet the requirements of today's tyre markets. All of our tyre gauges are manufactured to conform with the ANSI standard B40 100 accuracy which sets out the guidelines of accuracy that a tyre gauge must adhere to.

Having the correct tyre pressure maximises vehicle safety and performance, improves fuel economy and extends tyre wear and tread life.

This compact gauge uses full metal body with a diaphragm gauge to make it extremely robust in tough environments


  • Robust diaphragm tyre gauge
  • Dual hold on chuck
  • Complies to ANSI standard B40. 1-1974 accuracy
  • Dual scale
  • Rubber protector on gauge
  • Comfortable rubber grip on chuck handle

Product Specifications

  • Reader Unit: 50 mm dial gauge
  • Chuck Type: Hold on
  • Chuck Style: Dual angle
  • Scale: 0-150 psi , 0-1000 kPa
  • Hose Length: 400 mm
  • Accuracy: ¬±2 psi @ 25-75 psi
  • Operation: Hold on, read
  • Supply Pressure Max: 150 psi
  • Application: Long reach applications where a flexible stem and chuck are required


SKU 05.2250
Barcode # 9318728000488
Brand Jamec Pem
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.440m
Shipping Length 0.045m
